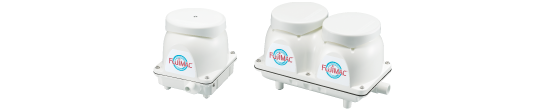

FujiMAC Air Pump (40RII/60RII/80RII/120RII/200RII)

FujiMAC Air Pump (40RII/60RII/80RII/120RII/200RII)

Vendor: FUJIMAC
$1,430.00
$1,430.00
style: MAC40R II #H48500
Subtotal: $1,430.00

Delivery Note

For purchases over $500, please pick up at SF Express. (except fish tank)

There is no free shipping for fish tanks

FujiMAC Air Pump (40RII/60RII/80RII/120RII/200RII)

FujiMAC Air Pump (40RII/60RII/80RII/120RII/200RII)

$1,430.00
FujiMAC Air Pump (40RII/60RII/80RII/120RII/200RII)

FujiMAC Air Pump (40RII/60RII/80RII/120RII/200RII)

$1,430.00
style: MAC40R II #H48500
Description
Description
x

Made in Japan

FujiMAC's 30-year record of producing the world's best diaphragm air pumps is achieved through rigorous quality control. FujiMAC is the only wastewater diaphragm air pump made in Japan. 100% design, production and testing in Japan.


longevity

The new RII series air pumps have been rigorously tested by FujiMAC's R&D staff for more than five years. Designed to withstand the elements, these pumps feature durable cast aluminum housings in the latest paint finishes. Final assembly is done in a highly controlled environment by skilled Japanese staff with continuous supervision and extensive quality control checks. Each individual pump was then tested and its performance measured before packaging.

Endurance test Crosscut test
Ultimate load test
FujiMAC employs a number of testing techniques to ensure that our pumps can withstand harsh environments such as the humidity of Southeast Asia and the hot Texas sun. Shown here is the pump running continuously for years in an uncontrolled outdoor environment, with daily paint adhesion tests to ensure a baked car quality finish will stand the test of time.

Energy efficient

The breakthrough in engineering design makes Fuji MAC the best choice for energy-saving and economical operation.
FujiMAC has the lowest operating cost of any sewage air pump.

Electricity consumption (calculated by month) Asia General VS RⅡ series

low noise level

Best-in-class noise levels are achieved through our proprietary noise reduction technology, including a unique sound-isolating aluminum enclosure and anti-vibration rubber technology.

Fuji MAC 80Rll Fuji MAC 100Rll
[refer to]
The strictest environmental standards related to noise.
40 dB or less
In particular, nighttime reference values ​​for quiet areas are required (environmental standard AA area)

extraordinary structure

pocketless oileasy to maintainsteady airflowMinimize wire structure





Specification

*Table values ​​for 230V 50Hz

Model Rated voltage air flow pressure outlet pipe weight Power consumption
_ 		noise level
MAC40RⅡpdf 230-240V 40L/min 12kPa 13mm
(outer diameter 18mm) 		5.0kg 27W 32 dB
MAC60RⅡpdf 60L/min 15kPa 35W 35 dB
MAC80RⅡpdf 80L/min 47W 36 dB
MAC100RⅡpdf 100L/min 18kPa 68W 39 dB
MAC120RⅡpdf 120L/min 20mm
(outer diameter 26mm) 		86W
MAC150RⅡpdf 230-240V 150L/min 20kPa 20mm
(outer diameter 26mm) 		9.0kg 100W 41 dB
MAC200RⅡpdf 200L/min 140W 43 dB
MAC250RⅡpdf 250L/min 186W 48 dB
MAC300RⅡpdf 300L/min 250W 50 dB

*Table values ​​for 120V 60Hz

Model Rated voltage air flow pressure outlet pipe weight Power consumption
_ 		noise level
MAC40RⅡpdf 120V 1.4CFM
 1.7PSI 1/2" diameter
(outer 3/4 diameter) 		5.0kg 30W 37 dB
MAC60RⅡpdf 2.1CFM
 2.2PSI 37W 39 dB
MAC80RⅡpdf 2.8CFM
 51W 40 dB
MAC100RⅡpdf 3.5CFM
 2.6PSI 74W 41 dB
MAC120RⅡpdf 4.2CFM
 3/4"
(outer diameter 1) 		93W
MAC150RⅡpdf 120V 5.3CFM
 2.9PSI 3/4"
(outer diameter 1) 		9.0kg 115W 41 dB
MAC200RⅡpdf 7.1 CFM
 155W 43 dB

Made in Japan

FujiMAC's 30 year track record of producing the worlds best diaphragm air pump has been achieved through stringent quality control. FujiMAC is the only wastewater diaphragm air pump available that is MADE IN JAPAN. 100 per cent of design, production and testing is performed in Japan.

Long Life

The new RII series air pumps have undergone over five years of rigorous testing by FujiMAC research and development staff. These pumps are designed to withstand the elements with a durable cast aluminum housing employing the latest paint finishes. Final assembly is done in a highly controlled environment by skilled Japanese staff with continuous oversight and numerous quality control checks. Each individual pump is then tested and performance measured prior to packaging.

An endurance test Cross cut test
Extreme duty testing
FujiMAC employs many testing techniques to ensure our pumps will stand up to such harsh environments as Southeast Asia humidity and the hot Texas sun. Shown here are pumps being run continuously for years in a uncontrolled outdoor environment, and also paint adhesion testing every day to ensure the baked on automotive quality finish will stand the test of time.

Energy Efficient

Engineering design breakthroughs make FujiMAC the best choice for energy conservation and economical operation.
FujiMAC has the lowest operating cost of any wastewater air pump.

Electricity consumption(monthly basis) Asian Competitors in General VS RⅡ series
Low Noise Level

Best in class noise level is achieved through our proprietary sound reduction technologies, including a unique noise barrier aluminum housing and anti vibration rubber technology.

FujiMAC 80Rll FujiMAC 100Rll
[Reference]
The most severe environmental standard related to noise.
40dB or less
Especially the nighttime reference value of the area requiring quietness (environmental standard AA area)

Extraordinary Structure

CompactOil lessEasy maintenanceStable Airflow



Minimized wire structure


Specification

*Numerical value of the table in the case of 230V 50Hz

Model Ratae Voltage Air Flow Pressure Outlet Pipe Weight Power
Consumption		 noise level
MAC40RⅡpdf 230-240V 40L/min 12kPa 13mm
(external dia. 18mm)		 5.0kg 27W 32dB
MAC60RⅡpdf 60L/min 15kPa 35W 35dB
MAC80RⅡpdf 80L/min 47W 36dB
MAC100RⅡpdf 100L/min 18kPa 68W 39dB
MAC120RⅡpdf 120L/min 20mm
(external dia. 26mm)		 86W
MAC150RⅡpdf 230-240V 150L/min 20kPa 20mm
(external dia. 26mm)		 9.0kg 100W 41dB
MAC200RⅡpdf 200L/min 140W 43dB
MAC250RⅡpdf 250L/min 186W 48dB
MAC300RⅡpdf 300L/min 250W 50dB

*Numerical value of the table in the case of 120V 60Hz

Model Ratae Voltage Air Flow Pressure Outlet Pipe Weight Power
Consumption		 noise level
MAC40RⅡpdf 120V 1.4CFM
 1.7PSI 1/2"dia.
(external 3/4 dia. )		 5.0kg 30W 37dB
MAC60RⅡpdf 2.1CFM
 2.2PSI 37W 39dB
MAC80RⅡpdf 2.8CFM
 51W 40dB
MAC100RⅡpdf 3.5CFM
 2.6PSI 74W 41dB
MAC120RⅡpdf 4.2CFM
 3/4″
(external 1 dia. )		 93W
MAC150RⅡpdf 120V 5.3CFM
 2.9PSI 3/4″
(external 1 dia. )		 9.0kg 115W 41dB
MAC200RⅡpdf 7.1 CFM
 155W 43dB
